Indoor Air Coils

Ensuring home comfort in every season

Working with your heating system in the winter and your cooling system in the summer, Ameristar indoor air coils help keep you comfortable no matter what the temperature is outside. With all-aluminum coils and galvanized steel cabinets, they’re also engineered to perform efficiently and reliably over the long haul.

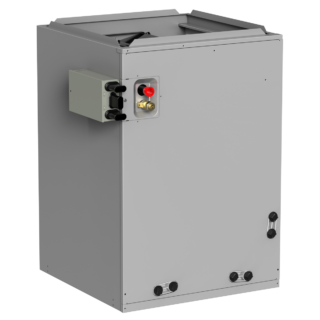

5MXC Indoor Air Coil

System Features

Utilizes R-454B Refrigerant
Multi-position
All-aluminum coil
Fully insulated cabinet
High-temp double-sloped drain pan
Factory installed fixed metering device (Flow Control Check Valve (FCCV))
Cooling and heat pump compatible
Approved for manufactured/mobile housing
Factory installed Refrigerant Detection System (RDS)

To minimize environmental impacts, the HVAC industry is transitioning to Lower Global Warming Potential (GWP) refrigerants. Ameristar’s newest lineup of equipment designs are tagged with our two-tone green icon for easy identification.

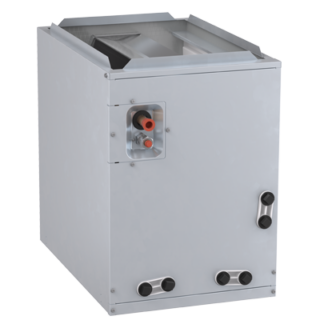

4MXC Indoor Air Coil

System Features

Multi-position
All-aluminum coil
Fully insulated galvanized steel cabinet
High-temp double-sloped drain pan
Factory installed flow controls
Cooling and heat pump compatible
Approved for manufactured/mobile housing

4MXC Indoor Air Coils

Model	Capacity (Tons)	Flow Control	Dimensions (in)
Model	Capacity (Tons)	Flow Control	H	W	D
4MXCA003AC6HCA	1.5-3.0	Orifice	20.0	14.5	21.0
4MXCB004AC6HCA	1.5-3.0	Orifice	20.0	17.5	21.0
4MXCC005AC6HCA	1.5-3.0	Orifice	20.0	21.0	21.0
4MXCB006AC6HCA	2.5-4.0	Orifice	26.0	17.5	21.0
4MXCC007AC6HCA	2.5-4.0	Orifice	26.0	21.0	21.0
4MXCD008AC6HCA	2.5-4.0	Orifice	26.0	24.5	21.0
4MXCC009AC6HCA	3.5-5.0	Orifice	30.0	21.0	21.0
4MXCD010AC6HCA	3.5-5.0	Orifice	30.0	24.5	21.0
4MXCB016AC6HCA	2.0-4.0	Orifice	30.0	17.5	21.0
4MXCC017AC6HCA	2.5-4.0	Orifice	30.0	21.0	21.0
4MXCD018AC6HCA	3.0-4.0	Orifice	30.0	24.5	21.0

SEER, or Seasonal Energy Efficiency Ratio, measures how efficiently a unit can cool your home in the summer. The higher the SEER number, the less energy you'll use.

*Registered Limited Warranty terms are applicable if the products are registered within 60 days of installation. Products can be registered online or by phone at 855-260-2975, otherwise Ameristar's Base Limited Warranty terms will apply. Base Limited Warranty terms can be found online at ameristarhvac.com. Warranties are for residential use only; some restrictions may apply. Ask your installer for full warranty information at the time of purchase.
