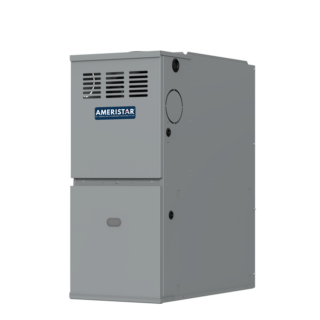

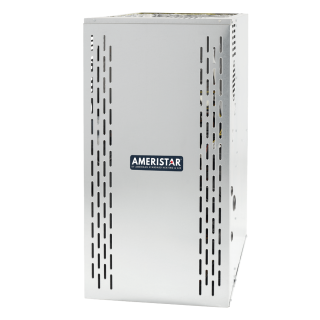

A801X Furnace

System Features

80% AFUE
Constant torque (ECM) motor
34" cabinet height on all models
2-5 ton models available in each family
Multiple venting options offered in each poise
Durable, galvanized steel cabinet
Select models compliant with California 40ng/J Low-NOx requirements
Assembled in Trenton, New Jersey

A801X 80% AFUE Multi-Position Furnaces

Model	CA Low NOx Model Number	Input BTU/h	Nominal Airflow (Tons)	Dimensions (in)
Model	CA Low NOx Model Number	Input BTU/h	Nominal Airflow (Tons)	H	W	D
A801X026AM2SCA	A801X026AM2TCA	26,000	2	34	14.5	28.75
A801X040AM3SCA	A801X040AM3TCA	40,000	2-3	34	14.5	28.75
A801X040BM2SCA	A801X040BM2TCA	40,000	2	34	17.5	28.75
A801X060BM3SCA	A801X060BM3TCA	60,000	3	34	17.5	28.75
A801X060BM4SCA	A801X060BM4TCA	60,000	4	34	17.5	28.75
A801X080BM4SCA	A801X080BM4TCA	80,000	3-4	34	17.5	28.75
A801X080CM5SCA	A801X080CM5TCA	80,000	4-5	34	21	28.75
A801X100CM5SCA	A801X100CM5TCA	100,000	4-5	34	21	28.75
A801X120DM5SCA	A801X120DM5TCA	120,000	5	34	24.5	28.75

AFUE stands for Annual Fuel Utilization Efficiency, which measures a furnace’s heating efficiency. The higher the AFUE, the less energy you’ll use to maintain pleasant temperatures.

*Registered Limited Warranty terms are applicable if the products are registered within 60 days of installation. Products can be registered online or by phone at 855-260-2975, otherwise Ameristar's Base Limited Warranty terms will apply. Base Limited Warranty terms can be found online at ameristarhvac.com. Warranties are for residential use only; some restrictions may apply. Ask your installer for full warranty information at the time of purchase.

A801X Slim Furnace

System Features

80% AFUE
Constant torque (ECM) motor
14.5” width, 28.75” depth x 34” height
Durable, galvanized steel cabinet
NOx Emissions: > 40 ng/J*

*not for sale in California

A951X Furnace

System Features

Up to 96% AFUE
Constant torque (ECM) motor
34" cabinet height on all models
2-5 ton models available in each family
Stainless steel primary and secondary heat exchangers
Compliant with California 40ng/J Low-NOx requirements
Energy Star® Certified
Assembled in Trenton, New Jersey

A951X 95-96% AFUE Upflow Furnaces

Model	Input BTU/h	Nominal Airflow (Tons)	AFUE	Dimensions (in)
Model	Input BTU/h	Nominal Airflow (Tons)	AFUE	H	W	D
A951X040BU3SAB	40,000	2-3	96%	34	17.5	28.75
A951X060BU4SAB	60,000	3-4	96%	34	17.5	28.75
A951X080BU4SAB	80,000	3-4	96%	34	17.5	28.75
A951X080CU5SAB	80,000	4-5	96%	34	21	28.75
A951X100CU5SAB	100,000	4-5	95%	34	21	28.75
A951X120DU5SAB	120,000	5	95%	34	24.5	28.75

A951X 95-96% AFUE Downflow Furnaces

Model	Input BTU/h	Nominal Airflow (Tons)	AFUE	Dimensions (in)
Model	Input BTU/h	Nominal Airflow (Tons)	AFUE	H	W	D
A951X040BD3SAB	40,000	2-3	96%	34	17.5	28.75
A951X060BD3SAB	60,000	3	95%	34	17.5	28.75
A951X080BD4SAB	80,000	4	95%	34	17.5	28.75
A951X100CD5SAB	100,000	5	95%	34	21	28.75
A951X120DD5SAB	120,000	5	95%	34	24.5	28.75

AFUE stands for Annual Fuel Utilization Efficiency, which measures a furnace’s heating efficiency. The higher the AFUE, the less energy you’ll use to maintain pleasant temperatures.

*Registered Limited Warranty terms are applicable if the products are registered within 60 days of installation. Products can be registered online or by phone at 855-260-2975, otherwise Ameristar's Base Limited Warranty terms will apply. Base Limited Warranty terms can be found online at ameristarhvac.com. Warranties are for residential use only; some restrictions may apply. Ask your installer for full warranty information at the time of purchase.

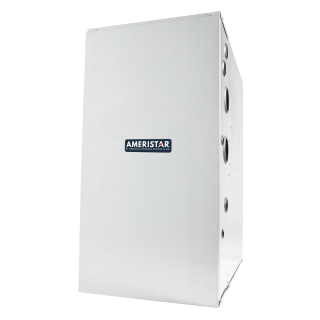

A952V Furnace

System Features

96% AFUE
Variable speed (ECM) motor
34" cabinet height on all models
2-5 ton models available in each family
Stainless steel primary and secondary heat exchangers
Compliant with California 40ng/J Low-NOx requirements
Energy Star® Certified
Assembled in Trenton, New Jersey

A952V 96% AFUE Upflow Furnaces

Model	Input BTU/h	Nominal Airflow (Tons)	AFUE	Dimensions (in)
Model	Input BTU/h	Nominal Airflow (Tons)	AFUE	H	W	D
A952V040BU3SAB	40,000	3	96%	34	17.5	28.75
A952V060BU3SAB	60,000	3	96%	34	17.5	28.75
A952V060BU4SAB	60,000	4	96%	34	17.5	28.75
A952V080BU4SAB	80,000	4	96%	34	17.5	28.75
A952V080CU5SAB	80,000	5	96%	34	21	28.75
A952V100CU4SAB	100,000	4	96%	34	21	28.75
A952V100CU5SAB	100,000	5	96%	34	21	28.75
A952V120DU5SAB	120,000	5	96%	34	24.5	28.75

A952V 96% AFUE Downflow Furnaces

Model	Input BTU/h	Nominal Airflow (Tons)	AFUE	Dimensions (in)
Model	Input BTU/h	Nominal Airflow (Tons)	AFUE	H	W	D
A952V040BD3SAB	40,000	3	96%	34	17.5	28.75
A952V060BD3SAB	60,000	3	96%	34	17.5	28.75
A952V080BD4SAB	80,000	4	96%	34	17.5	28.75
A952V100CD4SAB	100,000	4	96%	34	21	28.75
A952V100CD5SAB	100,000	5	96%	34	21	28.75
A952V120DD5SAB	120,000	5	96%	34	24.5	28.75

AFUE stands for Annual Fuel Utilization Efficiency, which measures a furnace’s heating efficiency. The higher the AFUE, the less energy you’ll use to maintain pleasant temperatures.

*Registered Limited Warranty terms are applicable if the products are registered within 60 days of installation. Products can be registered online or by phone at 855-260-2975, otherwise Ameristar's Base Limited Warranty terms will apply. Base Limited Warranty terms can be found online at ameristarhvac.com. Warranties are for residential use only; some restrictions may apply. Ask your installer for full warranty information at the time of purchase.
